Specific Learning Objectives

Bones and Foramina of the Orbit

Review the bones and foramina of the orbit.

3 question quiz:

Extraocular muscles, movements and nerves

This first movie reviews a dissection of the orbit to demonstrate the location of structures in the orbit.

This movie focuses on details of the actions of the muscles.

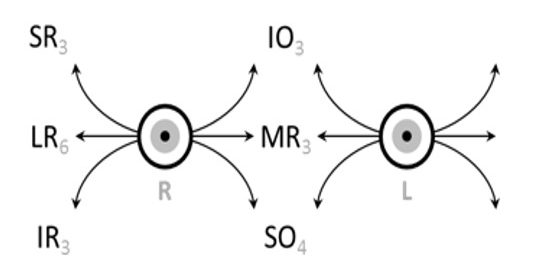

Clinical testing of extraocular muscles is accomplished with the H-test, diagramed below; the cranial nerves that innervate the muscles as well as the abbreviations of the muscles ar shown.

SR Superior rectus – Oculomotor nerve

LR Lateral rectus – Abducens nerve

IR Inferior rectus – Oculomotor nerve

IO Inferior oblique – Oculomotor nerve

MR Medial rectus – Oculomotor nerve

SO Superior oblique – Trochlear nerve

And here is an image showing normal eye movement responses in an H test.

Check your knowledge about muscle testing in the H-test:

Drag and drop the muscle tag (that includes the cranial nerve that innervates it) to the appropriate direction of testing.

Here is a tool that allows simulation of eye position and movement after nerve damage-give it a whirl!

Review the radiology of the orbit and eye with this drag and drop image.

The palpebrae

Cranial Nerve Palsies affecting Eye Movements

Lesions of individual cranial nerves result in changes in eye position at rest (in the primary position of the H test) along with abnormalities in conjugate movement with attempted saccades. In most cases, when the two eyes are not aligned correctly, the patient experiences diplopia (double vision). Sometimes, patients will subconsciously adopt a new head position that engages the vestibulo-ocular reflex to bring the eyes back into alignment and resolve the diplopia.

When presented with an image that appears to show eye misalignment, it is important to understand the context and what eye movement the patient may be attempting to execute. Pay attention to both eyes, and any indications in the image caption or graphic design of whether the image shows eyes at rest or attempting a directional movement.

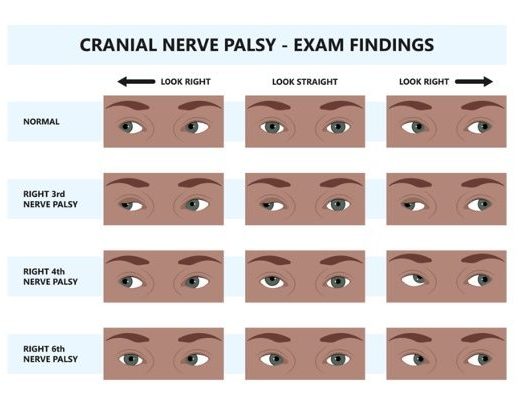

For example, in the image below, right eye medial deviation results when an intact subject looks to the left (see top row, right image). However, right eye medial deviation at rest (bottom row, center image), while looking the same in a graphic or photo, may result from a right abducens nerve palsy, and would be due to unopposed action of the medial rectus muscle innervated by the unaffected left oculomotor nerve. Checking both eyes can help clarify the examination. We suggest you work through the image below to learn how to distinguish the manifestations of lesions of cranial nerve 3,4, and 6.

Check your understanding of lesions to cranial nerves driving extraocular muscles.

Gaze control

Gaze refers to the coordinated movement of the eyes and head to maintain a stable view of an object. The intricate control of gaze involves complex neural pathways, including cranial nerves III, IV, and VI, which innervate the extraocular muscles, gaze centers in the brainstem, and cortical control areas. These movements are categorized into conjugate and disconjugate gazes.

• Conjugate Gaze: This describes the coordinated movement of both eyes in the same direction, such as when you look left or right. It’s essential for maintaining binocular vision and is controlled by gaze centers in the brainstem, such as the paramedian pontine reticular formation (PPRF) for horizontal gaze and the rostral interstitial nucleus of the medial longitudinal fasciculus for vertical gaze. These centers ensure the eyes move as a single unit.
• Disconjugate Gaze: Also known as vergence, this is the movement of the eyes in opposite directions. For example, when you focus on a nearby object, your eyes move inward (convergence), and when you look at a distant object, they move outward (divergence). Disconjugate gaze is vital for depth perception and maintaining a single, focused image as the distance to an object changes.

Here is a video on horizontal conjugate movement

Brainstem Lesions and Gaze Palsies

• Internuclear Ophthalmoplegia (INO): This is a classic finding from a lesion in the medial longitudinal fasciculus (MLF), the heavily myelinated tract that connects the CN VI nucleus to the contralateral CN III nucleus. In unilateral INO, when the patient attempts to look to one side, the abducting eye shows nystagmus, while the adducting eye fails to move past the midline. Multiple sclerosis is a common cause in young adults, while stroke is more common in the elderly.
• One-and-a-Half Syndrome: A lesion in the pons that affects both the MLF and the adjacent abducens nucleus/paramedian pontine reticular formation (PPRF) on the same side. The patient will have a total horizontal gaze palsy to the side of the lesion and an internuclear ophthalmoplegia on attempted gaze to the other side. The only remaining horizontal movement is abduction of the eye opposite the lesion.

Autonomically innervated structures of the orbit and eye

Recall the sympathetic innervation of the eye originates from the lateral horn at the T1 spinal cord level which contains the cell bodies of the pre-ganglionic neurons. These neurons synapse in the superior cervical ganglion, the most rostrally-located ganglion within the sympathetic chain. Axons of the post-ganglionic neurons form a plexus around and follow the internal carotid artery superiorly into the cranial vault. This explains why a carotid dissection may disrupt sympathetic function and may result in Horner’s syndrome.
